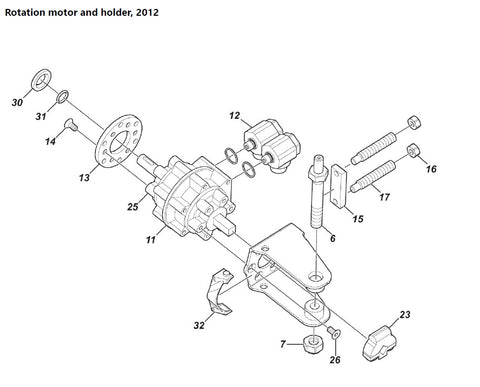

ROTATION MOTOR AND HOLDER, 2012
Product Code:
ROTATION MOTOR AND HOLDER, 2012
0 - 85595430 -STOP WING W SCREWS
6 - 91366201 - AXLE ARM SIDE
7 - 98482316 - LOCK NUT DIN 985 M12 A2 ELZ
11- 91691002 - ROTATION ACTUATOR
13 - 90903501 - HOLDER
14 - 90795509 - SCREW DIN7991 M6X12
15 - 94705401 - WASHER F AXLE VMS
16 - 99952202 - HEXAGON NUT M8 DIN934 A2-70
17- 92863503 - SCREW DIN 915 M8X40 A2
23 - 85595430 - STOP WING W SCREW
25 - 90691615 - SCREW DIHN 912 M5X30 A2-70
26 - 90795509 - SCREW DIN 7991 M6X12
27 - 90927801 - SHOULDER BOLT MAGAZINE
30 - 91529801 - WASHER
31 - 22340416 - O-RING 11.3-2.4 SH 70
32 - 94713701 - POKE PROTECTION
